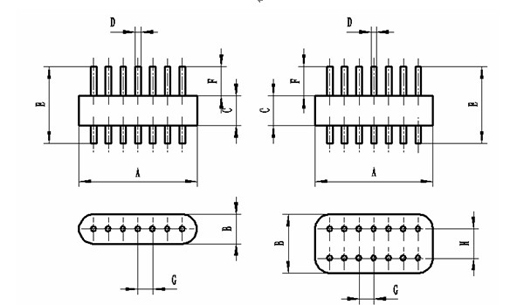

| 1.4 联排绝缘子 |
 |
|
| |
| |
| |
针数 |
A |
B |
C |
D |
E |
F |
G |
H |
3 |
8.88 |
3.8 |
2 |
0.6 |
9 |
4 |
2.54 |
|
4 |
11.42 |
3.8 |
2 |
0.6 |
9 |
4 |
2.54 |
|
5 |
13.96 |
3.8 |
2 |
0.6 |
9 |
4 |
2.54 |
|
6 |
16.5 |
3.8 |
2 |
0.6 |
9 |
4 |
2.54 |
|
7 |
19.04 |
3.8 |
2 |
0.6 |
9 |
4 |
2.54 |
|
8 |
21.58 |
3.8 |
2 |
0.6 |
9 |
4 |
2.54 |
|
9 |
24.12 |
3.8 |
2 |
0.6 |
9 |
4 |
2.54 |
|
10 |
14 |
5.2 |
2 |
0.5 |
7.5 |
3.5 |
2.54 |
2.54 |
12 |
16.54 |
5.2 |
2 |
0.5 |
7.5 |
3.5 |
2.54 |
2.54 |
14 |
19.08 |
5.2 |
2 |
0.5 |
7.5 |
3.5 |
2.54 |
2.54 |
16 |
21.62 |
5.2 |
2 |
0.5 |
7.5 |
3.5 |
2.54 |
2.54 |
|
| |
| |
|
