| 1.2 直流/馈电类绝缘子 |
 |
|

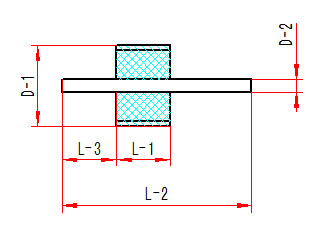

| 直流类绝缘子的导体直径、长度，针的直径、长度均可按照客户的要求定制。 (本产品所有尺寸均按毫米标注)。 |
|
| |
| |
| |
型 号 |
D-1 |
D-2 |
L-1 |
L-2 |
L-3 |
备 注 |
DC1216-0.45(8-2.8) |
1.2 |
0.45 |
1.6 |
8 |
2.8 |
|
DC1616-0.45(12-3.4) |
1.6 |
0.45 |
1.6 |
12 |
3.4 |
|
DC2016-0.5(12-4.6) |
2.0 |
0.5 |
1.6 |
12 |
4.6 |
|
DC2016-0.7(11-4.6) |
2.0 |
0.7 |
1.6 |
11 |
4.6 |
|
DC2016-0.7(17-5) |
2.0 |
0.7 |
1.6 |
17 |
5 |
|
DC2018-0.5(14-6.1) |
2.0 |
0.5 |
1.8 |
14 |
6.1 |
|
DC2020-0.6(9-4) |
2.0 |
0.6 |
2.0 |
9 |
4 |
|
DC2030-0.7(11-4.6) |
2.0 |
0.7 |
3.0 |
11 |
4.6 |
|
DC2516-0.7(11-4.6) |
2.5 |
0.7 |
1.6 |
11 |
4.6 |
|
DC2518-0.8(12.8-5) |
2.5 |
0.8 |
1.8 |
12.8 |
5 |
|
DC2518-0.8(27-15) |
2.5 |
0.8 |
1.8 |
27 |
15 |
|
DC2520-0.8(25-13) |
2.5 |
0.8 |
2.0 |
25 |
13 |
|
DC2530-0.7(11-4) |
2.5 |
0.7 |
3.0 |
11 |
4 |
|
DC2816-1.0(11.5-4.1) |
2.8 |
1.0 |
1.6 |
11 |
4.1 |
|
DC2816-1.0(16-4.5) |
2.8 |
1.0 |
1.6 |
16 |
4.5 |
|
DC2830-1.0(11.5-3) |
2.8 |
1.0 |
3.0 |
11.5 |
3 |
|
DC2830-1.0(16-6.5) |
2.8 |
1.0 |
3.0 |
16 |
6.5 |
|
DC3030-0.8(25-3) |
3.0 |
0.8 |
3.0 |
25 |
3 |
|
接地端子 |
2.0 |
0.7 |
1.6 |
17 |
5 |
|
|
| |
| |
|
